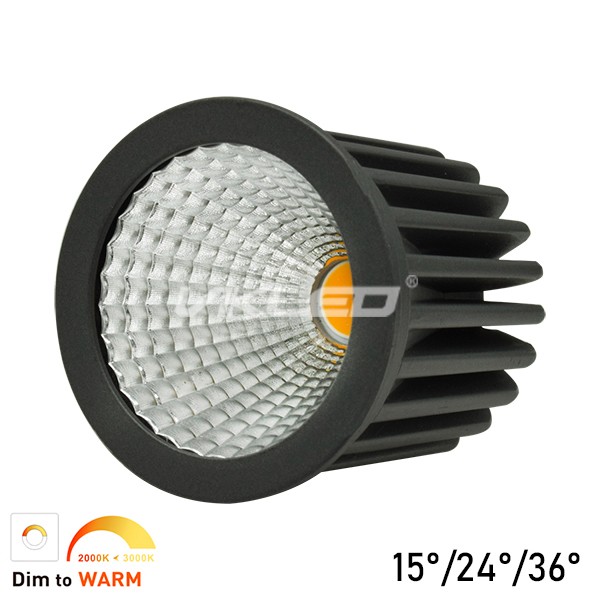

Reverse phase AR70 Spotlight Module Dimmable 7W OVE Samsung

Reverse phase AR70 Spotlight Module Dimmable 7W OVE Samsung,was designed in anti-glare bridge structure reflector with UGR<13.3000K is excellent choice for high-end commercial project.

Technical data for bulbsDTW 7W


Wattage7W
ChipCitizen
Chip optionsBridgelux/ Cree/ Luminous/ Nichia/ Lumileds
CCT options2000-2700K/ 2200-2800K/ 2000-3000K
CRI(Ra>) options92/ 97
Luminous flux (based on 2000-3000K Ra>97)450lm
SDCM(based on 2000-3000K Ra>97)<3
SocketPlug
Input voltage100-240V
Input current32mA
DimmableYes
Dim optionsTriac/ Leading Edge/ Trailing Edge/ 0-10V/ 1-10V
DALI/ Wifi Mesh/ Bluetooth Mesh
Lifetime (L70/ B50)50000 hours
Working temperature-30-+40
1000H lumen maintenance99-99.5%
Degree beam angle15°/ 24°/ 36°
UGR (unified glare rating)<19
SizeL52xD50mm
CEYes
RohsYes



TW CCT table.jpgTunable White.jpg


LED AR70 is patented by Vikled since 2011, with concept of bridge design anti-glare. With low UGR( UGR<13 ) design, our lamps are popular in high-end project. The options of beam angle, from 8 degree to 48 degree, satisfy the different requirement in many occasions, such as gallery, lobby in hotel (8 degree AR111 in 5 meter distance has over 800 lux)...







Vikled has been in molding industry since 2002, offering rigorous design and precise process. The 0 tolerance design heatsink brings the heat from aluminum bridge, so that the Tc is lower than 75, which provide more than 50,000 hours lifespan. (L70/B50: 50.000h)


G53 12W模具设计.jpg

Only SDCM<3 chip (3 steps MacAdam Ellipse) will be used, to provide light consistency to our high-end clients. When it comes to dim to warm, the consistency is becoming more important.



MacAdam Ellipse.jpg

Together with our Triac dimmable driver, we offer 5 years warranty with defective rate below 1% in total. Our Triac dimmable driver is designed in flickering free and double PFC(PF>0.99), matching perfectly with most of Triac dimmers, By specially improvement for leading edge dimmer, it is noisy free, and working steadily when dim low.



Dim options of DALI, 0-10V, 1-10V, Push dimming, Bluetooth mesh, WIFI mesh... were provided, with brands like Tridonic, Philips, HEP, Artec, Eaglerise....



We also have different installation housings to match with our LED AR70, from recessed, to surface mounted, and track, in different shapes and functions.



Our most popular items are listed on our website, but there are countless other possible products that we can help you with. For example, different beam angels, drivers or LED chips are no problem for us.



Please feel free to contact us for catalogue, datasheet, technical drawing, IES file, and dimmer list.
