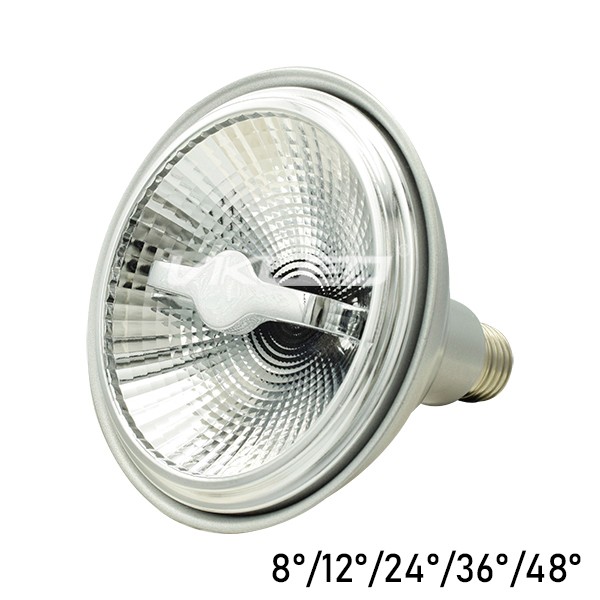

Leading Edge LED PAR38 Reflector 2600K 18W Semko Toyoda

Leading Edge LED PAR38 Reflector 2600K 18W Semko Toyoda,was designed in anti-glare bridge structure reflector with UGR<13.2700K is excellent choice for high-end commercial project.

Technical data for bulbsRegular 18W


Wattage18W
ChipCitizen
Chip optionsBridgelux/ Cree/ Luminous/ Nichia/ Samsung/
Toyoda/ Osram/ Lumileds/ Seoul Semiconductor
CCT options1800K/ 2000K/ 2200K/ 2400K/
2700K/ 3000K/ 4000K/ 5000K
CRI(Ra>) options82/ 92/ 97
Luminous flux (based on 2700K Ra>92)1100lm
SDCM (based on 2700K Ra>92)<3
SocketE27
Input voltage100-240V
Input current86mA
DimmableYes
Dim optionsTriac/ Leading Edge/ Trailing Edge
Lifetime (L70/ B50)50000 hours
Working temperature-30-+40
1000H lumen maintenance99-99.5%
Degree beam angle8°/ 12°/ 24°/ 36°/ 48°
UGR (unified glare rating)<13
SizeL128 x D120mm
CEYes
RohsYes



TW CCT table.jpgTunable White.jpg


LED PAR38 is patented by Vikled since 2011, with concept of bridge design anti-glare. With low UGR( UGR<13 ) design, our lamps are popular in high-end project. The options of beam angle, from 8 degree to 48 degree, satisfy the different requirement in many occasions, such as gallery, lobby in hotel (8 degree AR111 in 5 meter distance has over 800 lux)...







Vikled has been in molding industry since 2002, offering rigorous design and precise process. The 0 tolerance design heatsink brings the heat from aluminum bridge, so that the Tc is lower than 75, which provide more than 50,000 hours lifespan. (L70/B50: 50.000h)


G53 12W模具设计.jpg

Only SDCM<3 chip (3 steps MacAdam Ellipse) will be used, to provide light consistency to our high-end clients. When it comes to dim to warm, the consistency is becoming more important.



MacAdam Ellipse.jpg

Together with our Triac dimmable driver, we offer 5 years warranty with defective rate below 1% in total. Our Triac dimmable driver is designed in flickering free and double PFC(PF>0.99), matching perfectly with most of Triac dimmers, By specially improvement for leading edge dimmer, it is noisy free, and working steadily when dim low.



Dim options of DALI, 0-10V, 1-10V, Push dimming, Bluetooth mesh, WIFI mesh... were provided, with brands like Tridonic, Philips, HEP, Artec, Eaglerise....



We also have different installation housings to match with our LED PAR38, from recessed, to surface mounted, and track, in different shapes and functions.



Our most popular items are listed on our website, but there are countless other possible products that we can help you with. For example, different beam angels, drivers or LED chips are no problem for us.



Please feel free to contact us for catalogue, datasheet, technical drawing, IES file, and dimmer list.
